SQL queries can also be used for data wrangling. SQL is a language, and there are lots of different database implementations. You might have heard of MySQL, PostgreSQL, Oracle, Microsoft SQL Server, or cloud implementations like Snowflake.
In this course we will be working with DuckDB. DuckDB is an “in-notebook” SQL package. This means that we don’t have to run a database server separately from our notebooks.
The SQL we will learn will be largely standard and should work across all databases. Where we use things that are specific to DuckDB I will highlight that, and provide pointers to explanations in other SQL implementations.
DuckDB is an R package. The SQL pages also use gt, which supplies the gtcars data (you may already have it from the R pages). If you have not installed them yet, run this once in the RStudio Console (not in your notebook):
install.packages(c("duckdb", "gt"))
Or use the RStudio menu: Tools → Install Packages…, type duckdb, gt, and click Install.
The install can take a while. Usually it downloads in under a minute, but on some computers R has to build DuckDB from its source code, which can take 10 minutes or more and prints a lot of output. That is normal; let it finish before running the cells below.
Then we run the two course setup chunks. The R one checks your versions and loads the tidyverse; the SQL one checks DuckDB and connects to a database. Copy both to the top of your own notebook. If either stops with “Course setup … found problems”, follow the instructions in the message.
Course setup (R): check versions and load packages
# Checks that R and each package are installed and new enough for this course.# Stops with a list of everything that needs fixing, and how to fix it.check_course_versions <-function(required, area) { problems <-character(0) to_install <-character(0) found <-character(0)for (name innames(required)) { need <- required[[name]]if (name =="R") { have <-getRversion()if (have < need) { problems <-c(problems, sprintf("R is version %s; this course needs %s or newer. Install the current R from https://cran.r-project.org/ (see https://howisonlab.github.io/datawrangling/current/rtidyverse/rstudio_installation.html), then reinstall your packages.", have, need)) } found <-c(found, paste("R", have)) } elseif (!nzchar(system.file(package = name))) { problems <-c(problems, sprintf("%s is not installed.", name)) to_install <-c(to_install, name) } else { have <-packageVersion(name)if (have < need) { problems <-c(problems, sprintf("%s is version %s; this course needs %s or newer.", name, have, need)) to_install <-c(to_install, name) } elseif (isNamespaceLoaded(name) &&getNamespaceVersion(name) != have) { problems <-c(problems, sprintf("%s %s is installed, but this R session is still using %s. Restart R.", name, have, getNamespaceVersion(name))) } found <-c(found, paste(name, have)) } }if (length(problems) >0) { fix <-"In RStudio choose Session > Restart R"if (length(to_install) >0) { fix <-paste0(fix, ", then run this in the Console:\n install.packages(c(",paste0('"', to_install, '"', collapse =", "), "))\n") }stop("Course setup (", area, ") found problems:\n - ",paste(problems, collapse ="\n - "), "\n\n", fix, "\nThen run the setup chunk(s) again.", call. =FALSE) }cat("Course setup OK (", area, "): ", paste(found, collapse =", "), "\n", sep ="")}check_course_versions(c(R ="4.5.0", # CRAN builds Mac/Windows packages for the current and previous R onlytidyverse ="2.0.0",dplyr ="1.2.0", # recode_values() and replace_values()tidyr ="1.3.0", # separate_wider_delim()gt ="1.0.0", # needed by gtExtrasgtExtras ="0.6.1"# works with ggplot2 4), "R")library(tidyverse)library(gt)library(gtExtras)
Course setup OK (R): R 4.6.1, tidyverse 2.0.0, dplyr 1.2.1, tidyr 1.3.2, gt 1.3.0, gtExtras 0.6.2
Course setup (SQL): check versions and connect to DuckDB
# needs check_course_versions() from the Course setup (R) chunkcheck_course_versions(c(DBI ="1.0.0",duckdb ="1.5.5"# duckdb(shared_home = FALSE)), "SQL")library(DBI)library(duckdb)options(duckdb.enable_rstudio_connection_pane =TRUE)# a temporary in-memory database, nothing saved to a filedrv <-duckdb(shared_home =FALSE)con <-dbConnect(drv)
Course setup OK (SQL): DBI 1.3.0, duckdb 1.5.6
Note
shared_home = FALSE tells DuckDB to keep its working files in a temporary folder for this R session. Without it, recent versions of DuckDB stop and ask in the Console duckdb: create ~/.duckdb? (Yes/no/cancel), which makes the notebook look stuck until you answer. If you see that question anyway, answering no is fine.
We can write data frames into the database, where they are known as tables. Later we will also read csv files directly in using DuckDB, see SQL Transforms Extras

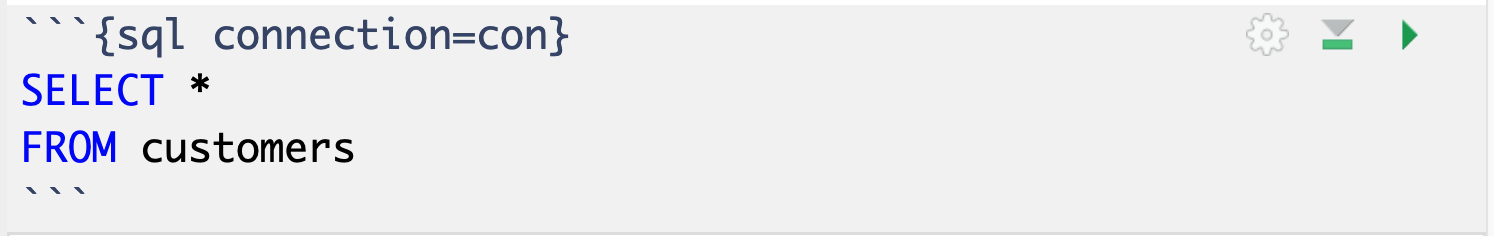

SQL queries will be executed in SQL cells. We also need to tell each cell which database connection to use (con), which goes in the cell header. An SQL cell will look like this in source mode.
```{sql connection=con}SELECT*FROM customers```

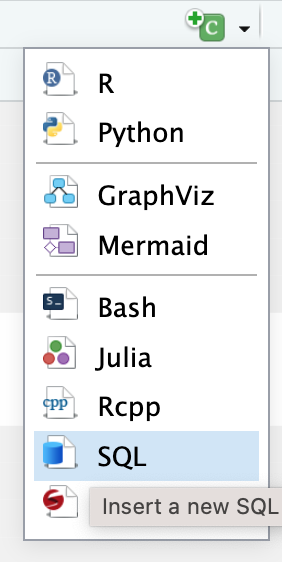

The easiest way to create one is the cell insertion drop down in RStudio: choose SQL, and you get a cell with {sql connection=} in the header, where you type con.
SELECT and FROM
SELECT*FROM customers
FROM specifies the table that we want to query. Here we query a table called customers
SELECT enables us to exclude columns. To see all columns we use the special character * (pronounced star).
The output produced looks just like any data frame. Notice the “4 records” at the bottom? That is what a row is called in SQL, a record.
SELECT*FROM customers
4 records
customer_name
customer_age
customer_state
Jihong Li
34
California
Sarah Brown
66
Idaho
Rupert Brown
89
California
Ravi Shastri
62
Maharashtra
Caution
SQL queries are particular about the order of parts. Most SQL implementations will give an error if we write FROM before SELECT (or if we just write FROM without a SELECT). DuckDB, funnily enough, will allow either one of those. But … when in SQL land stick with the typical ordering.
Excluding rows
The WHERE clause allows us to specify conditions that each row must meet. SQL uses a single = for these tests (rather than the double == used in other frameworks). Text items in the query are enclosed in single quotes, thus 'California' but numbers can be written on their own.
We can also match part of a text value using LIKE. The % is a wildcard meaning “any characters (or none)”, so '%Brown' means “ends with Brown” and '%Brown%' would mean “contains Brown anywhere”.
If you are thinking “Hey, that is sort of like English” then you are on to something. When SQL was first defined, waaaaay back in the late 1970s, the thought was that “managers” (as in not programmers) would be able to use this language. Today, with GenAI, we may finally be at a point where natural language prompts can write SQL queries (sometimes, maybe, but can you tell if it’s correct?).
Excluding columns
In SQL we specify the columns that we want to see using the SELECT clause, and providing a comma separated list.
Generally speaking in SQL we haven’t been able to do more advanced sub-setting of columns (such as saying “everything other than customer_name” or “all columns that start with numbers”), although some dialects of SQL do offer terms like EXCEPT or EXCLUDE.
Creating new columns
SQL does allow the creation of new result columns, using the SELECT clause and AS to change names.
Here is how we would create a new column for a discounted price; we provide a little piece of code that is applied to every row. Here I’ve also swapped to putting each term in the SELECT on its own line to make things clearer (SQL is not fussy about whitespace).
Above I said that SQL SELECT queries can create new result columns. Here result is doing some heavy lifting.
When we execute an SQL SELECT query we get back results (a ResultSet) but we do not change the database at all. SELECT queries are read only. So while we can create a new column, that happens after the data is pulled from the database table and the new column only exists in the results of the query.
This makes sense in SQL land because the core usage is not inside an individual analyst’s notebook or computer, but in shared databases provided by centralized servers running on their own hardware. Changing the data would change it for everyone; if you changed a column name in a table, then likely everyone else’s queries would break. The website that the database backed would stop working and you’d, uh, definitely get woken up to fix it.
If we want the results of a query to persist in the database we do have the option of creating new tables, using the result of a SELECT query. We can say that the table should be temporary (not persist past the end of our session), or the table could be permanent.
If we are getting into changing column names or structures in tables in a database that anyone else might use … then we are in the world of migrations which is its own fascinating area, with a set of version control technologies and social/managerial practices.
Combining columns
We can combine columns using SQL SELECT (again not changing the table just the results). This uses CONCAT and visits each row. We can use column names but we can also provide little chunks of text to be used with each line.
SELECT product_num, product_name,CONCAT(product_name, ' just $', price_in_dollars, '.00. Buy today!') AS product_labelFROM products
4 records
product_num
product_name
product_label
SPR-004456
Skateboard
Skateboard just $121.00. Buy today!
SPR-003356
Basketball
Basketball just $34.00. Buy today!
SPR-004499
Tennis balls
Tennis balls just $12.00. Buy today!
FTW-098756
Tennis shoes
Tennis shoes just $79.00. Buy today!
Treating different cases differently
SQL can do different things for different rows, using CASE in the SELECT clause. For example we can create a different product_label for the more expensive items.
We learned this in R:
mutate(product_label =case_when( price_in_dollars >100~str_glue("Treat yourself. Invest ${price_in_dollars} for a {product_name} today!"),TRUE~str_glue("{product_name} just ${price_in_dollars}.00. Buy today!") )
The logic is the same in SQL but the syntax is a little different.
SELECT product_num, product_name,CASEWHEN price_in_dollars >100THENCONCAT('Treat yourself. Invest $', price_in_dollars, ' for a ', product_name, ' today!') ELSECONCAT(product_name, ' just $', price_in_dollars, '.00. Buy today!') ENDAS product_labelFROM products
4 records
product_num
product_name
product_label
SPR-004456
Skateboard
Treat yourself. Invest $121 for a Skateboard today!
SPR-003356
Basketball
Basketball just $34.00. Buy today!
SPR-004499
Tennis balls
Tennis balls just $12.00. Buy today!
FTW-098756
Tennis shoes
Tennis shoes just $79.00. Buy today!
Extract/Separate
You can extract content out of cells within a column using string functions in SQL. They do vary a bit by dialect, but STRING_SPLIT is frequently available and is in DuckDB.
SELECT STRING_SPLIT(product_num, '-')[1] AS product_code, STRING_SPLIT(product_num, '-')[2] AS product_num_no_code, product_nameFROM products
4 records
product_code
product_num_no_code
product_name
SPR
004456
Skateboard
SPR
003356
Basketball
SPR
004499
Tennis balls
FTW
098756
Tennis shoes
You might notice that you have to repeat the STRING_SPLIT function twice. That’s just the way SQL works.
There are also functions that enable extract using regex. Here we are using what are called “capturing parens”. More on Regex, including capturing parens at https://regexone.com/
SELECT REGEXP_EXTRACT(product_num, '^(\w\w\w)') AS product_code, REGEXP_EXTRACT(product_num, '(\d+)') AS product_num_no_code, product_nameFROM products
4 records
product_code
product_num_no_code
product_name
SPR
004456
Skateboard
SPR
003356
Basketball
SPR
004499
Tennis balls
FTW
098756
Tennis shoes
Note
Are you getting errors about unknown columns? SQL dialects differ on whether you can use double quotes like " for strings, or whether you have to use single quotes (like '). DuckDB requires single quotes; MySQL will allow double quotes.
This is because SQL needs to know whether something is a column name or not. If there are no special characters in column names then you can just write the column name directly (like product_name above). Spaces, particularly, cause problems. If a column name has a space in it, then SQL needs some way of knowing that two words are actually one thing.
DuckDB uses the double quotes for that: so "product name" would make DuckDB think you are providing a column name (which it probably won’t find, if you meant a string).
MySQL can allow strings to have double quotes, because MySQL uses backticks to show a column name, e.g., `product name`.
DuckDB has a function that can create new rows from parts of a string that is split up, that function is called … UNNEST
SELECT course_name, UNNEST(STRING_SPLIT(students_enrolled, ', ')) AS student_enrolledFROM courses
7 records
course_name
student_enrolled
Divination
Harry
Divination
Ron
Herbology
Hermione
Herbology
Harry
Flying Lessons
Harry
Flying Lessons
Hermione
Flying Lessons
Ron
Notice that we split on ', ' (a comma followed by a space), because that is what separates the names. If we split on just ',' then every name after the first would start with a space (' Ron'), and ' Ron' is not equal to 'Ron'.
Note
In the code above we have a function call inside another function call. STRING_SPLIT is called inside UNNEST.
Programmers learn to read lines like these “inside out”. That is their eyes seek out the inner-most part of the function call, then they work outwards. So they might read this as “split the text in the column into a list, then pass that list to the UNNEST function”.
Here is that reading for the Divination row, where students_enrolled is 'Harry, Ron' (press Step or Play):
This is also what the pipe operator |> or %>% in R is helping with: instead of reading function calls inside out, we can write them as a pipeline. E.g.,
which could be read as “take the string ‘Harry, Ron’, then split it, then unnest the result”. unnest returns rows, not a single value: one row for each item in the list.
Programming with pipes, is sometimes called “chaining” because you are linking together functions like links in a chain … as we will see there is an equivalent in Python called “method chaining,” in fact we’ll be learning what is called “chained pandas”.
Which sounds sad (poor animals, chained up) but is actually very nifty
Historically many dialects of SQL (MySQL, for example) did not have a convenient approach to transformations involving taking a table wider or longer. Generally those sort of transformations had to be done using programming languages outside SQL, often Python or Perl, or GUI based ETL tools (Extract, Transform, Load)
Today, though, most SQL dialects offer an ability to take data wider or longer. In DuckDB the functions are called “UNPIVOT” (which takes data from wider formats to longer formats) and “PIVOT” which takes data from longer formats to wider formats.
Caution
Remember that the word pivot can be tricky. In Excel a “pivot table” is a kind of group_by/aggregate with the added ability to distribute one grouping variable into new columns. We will learn more about that, but for now just keep in mind that different communities use pivot in slightly different, partially overlapping ways.
And almost all communities using the word do not understand that others use it differently …
We can make a wider format longer using UNPIVOT like this
UNPIVOT populations_wideON2010, 2011, 2012, 2013INTO NAME yearVALUE population;
Displaying records 1 - 10
country
year
population
Australia
2010
18767085
Australia
2011
19056040
Australia
2012
19414834
Australia
2013
19775013
India
2010
383721793
India
2011
393333604
India
2012
403171286
India
2013
413200994
United States
2010
249849720
United States
2011
252208133
That approach requires you to manually specify the column names, but there is an approach that allows you to specify the reverse (columns not to pivot) which we discussed as knowing which are the “identifier” columns. In this example, the one column that we want to treat specially is country.
UNPIVOT populations_wideONCOLUMNS(* EXCLUDE(country))INTO NAME yearVALUE population;
Displaying records 1 - 10
country
year
population
Australia
2010
18767085
Australia
2011
19056040
Australia
2012
19414834
Australia
2013
19775013
India
2010
383721793
India
2011
393333604
India
2012
403171286
India
2013
413200994
United States
2010
249849720
United States
2011
252208133
Note
The specific syntax for wider/longer operations in different SQL dialects varies a lot; it’s kind of a mess.
Happily, GenAI models seem to be very good at consuming documentation and tutorials and providing well targeted snippets that can help us with specific syntax and specific dialects.
But when we are building prompts, we have to know what we are asking for. The language in this course around data transformations, abstracted from any particular framework, language, or dialect, will hopefully help you not only talk to other people about data transforms, but talk to AI as well!
We can transform longer tables to wider tables using PIVOT (which has PIVOT_WIDER as a handy synonym).
If you are wondering why the first() part is needed there, this is because under the hood PIVOT_WIDER is implemented as a GROUP BY operation, with the rows grouped by country, year. In these data there is only one row for each country, year combination so we can just take the first value.
It is possible to achieve a similar outcome using CASE statements; in SQL dialects that don’t have a PIVOT you will see people do it this way.
SELECT country,SUM(CASEWHENyear='2010'THEN population ELSE0END) AS"2010",SUM(CASEWHENyear='2011'THEN population ELSE0END) AS"2011",SUM(CASEWHENyear='2012'THEN population ELSE0END) AS"2012",SUM(CASEWHENyear='2013'THEN population ELSE0END) AS"2013"FROM populations_longGROUPBY country
3 records
country
2010
2011
2012
2013
India
383721793
393333604
403171286
413200994
Australia
18767085
19056040
19414834
19775013
United States
249849720
252208133
254614421
256953576
To understand how this works, let’s focus on just the first two Australia rows (2010 and 2011).
SELECT*FROM populations_longWHERE country ='Australia'ORDERBYyearLIMIT2
2 records
country
year
population
Australia
2010
18767085
Australia
2011
19056040
The CASE query works row by row. To see what’s happening we will take off the SUM part, and only make columns for those two years.
SELECT country,CASEWHENyear='2010'THEN population ELSE0ENDAS"2010",CASEWHENyear='2011'THEN population ELSE0ENDAS"2011"FROM populations_longWHERE country ='Australia'ORDERBYyearLIMIT2
2 records
country
2010
2011
Australia
18767085
0
Australia
0
19056040
The CASE statement looks at the first row (Australia, 2010, 18767085). Each part of the SELECT executes with those data as input. So the SELECT country produces “Australia”. The first CASE asks “Does year equal 2010” and the answer is yes, so it outputs 18767085 (the value of population for that row) and puts it in a column called “2010”. The second CASE then executes, but still with the same input data. Since year is not equal to 2010, this outputs 0 for a column called “2011”.
If we do that for all the years but still just Australia.
SELECT country,CASEWHENyear='2010'THEN population ELSE0ENDAS"2010",CASEWHENyear='2011'THEN population ELSE0ENDAS"2011",CASEWHENyear='2012'THEN population ELSE0ENDAS"2012",CASEWHENyear='2013'THEN population ELSE0ENDAS"2013"FROM populations_longWHERE country ='Australia'
4 records
country
2010
2011
2012
2013
Australia
18767085
0
0
0
Australia
0
19056040
0
0
Australia
0
0
19414834
0
Australia
0
0
0
19775013
Each row in the original table has turned into three zeros and one population number (for the year that was in that row).
Hopefully now we can see what we need to do is “squeeze” up the rows, so that the zeros disappear and each year column just has the large number in it. Thankfully we have a way to do this, using GROUP BY and aggregate. This is the same group/aggregate transform we learned in Data Transforms and in R; we will cover the SQL version, GROUP BY, properly on the next page (SQL Aggregate and Grouping). In this case SUM will work because if we add the three 0s to the population number we end up with the population number.
SELECT country,SUM(CASEWHENyear='2010'THEN population ELSE0END) AS"2010",SUM(CASEWHENyear='2011'THEN population ELSE0END) AS"2011",SUM(CASEWHENyear='2012'THEN population ELSE0END) AS"2012",SUM(CASEWHENyear='2013'THEN population ELSE0END) AS"2013"FROM populations_longGROUPBY country
3 records
country
2010
2011
2012
2013
India
383721793
393333604
403171286
413200994
Australia
18767085
19056040
19414834
19775013
United States
249849720
252208133
254614421
256953576
This works, but is it … non-intuitive and manual. So huzzah for modern SQL dialects having a native PIVOT feature!
Exercises
Load this data frame into a DuckDB table. Start your notebook with the two course setup chunks (R and SQL) from the top of this page. If you get errors use the “Restart R and clear all output” option.
Which characters have grey hair? (Note: look carefully at the hair_color column; some characters have more than one hair color listed. LIKE will help.)
Review exercises (warm-up for SQL Aggregate)
These use a larger dataset: a year of sales from a pizza restaurant, pizzaplace, which comes with the gt package (the same package that supplies gtcars). Load it into DuckDB:
Find the chicken pizzas (their name contains ckn) in sizes L or XL. Show only the name, size, and price columns. Are there any XL chicken pizzas?
The id column looks like 2015-000123. Split it into two columns, order_year and order_number. Then, in the same query, split time (like 11:38:36) to get an order_hour column.
Add a size_label column that says 'party' for XL and XXL pizzas and 'regular' for everything else.
Run this query, then discuss with your neighbor: why do several rows have the same id? What does one row in pizzaplace represent? If you counted the rows in the table, what would you be counting?
